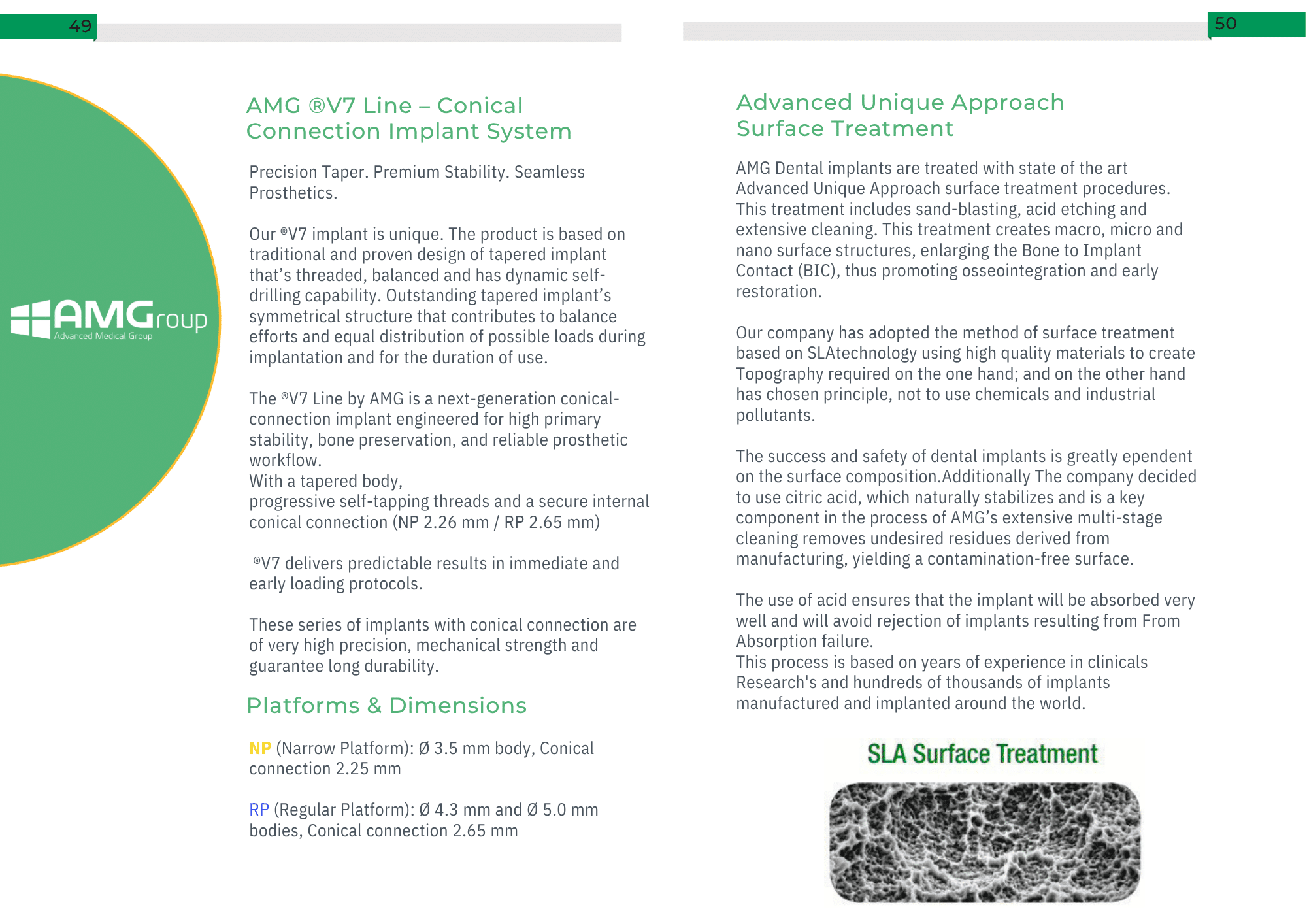

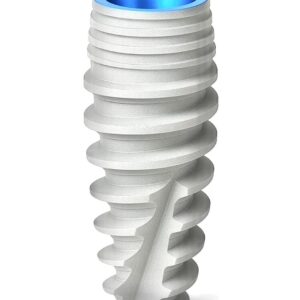

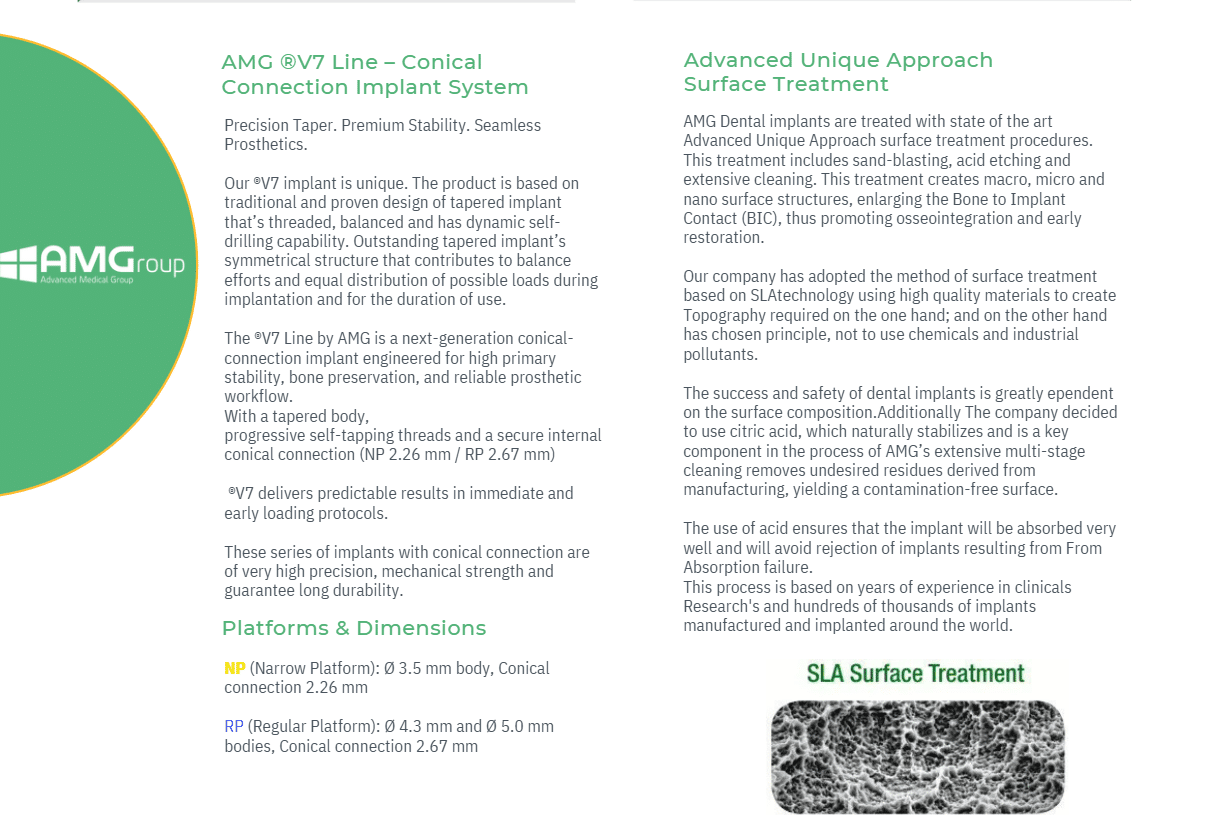

AMG® Dental Implant ®V7 Line – Conical Connection Implant System(NP)

Precision Taper. Premium Stability. Seamless Prosthetics.

The ®V7 Line by AMG is a next-generation conical-connection implant engineered for high primary stability, bone preservation, and reliable prosthetic workflow.

With a tapered body, progressive self-tapping threads and a secure internal conical connection (NP 2.25 mm / RP 2.65 mm), ®V7 delivers predictable results in immediate and early loading protocols.

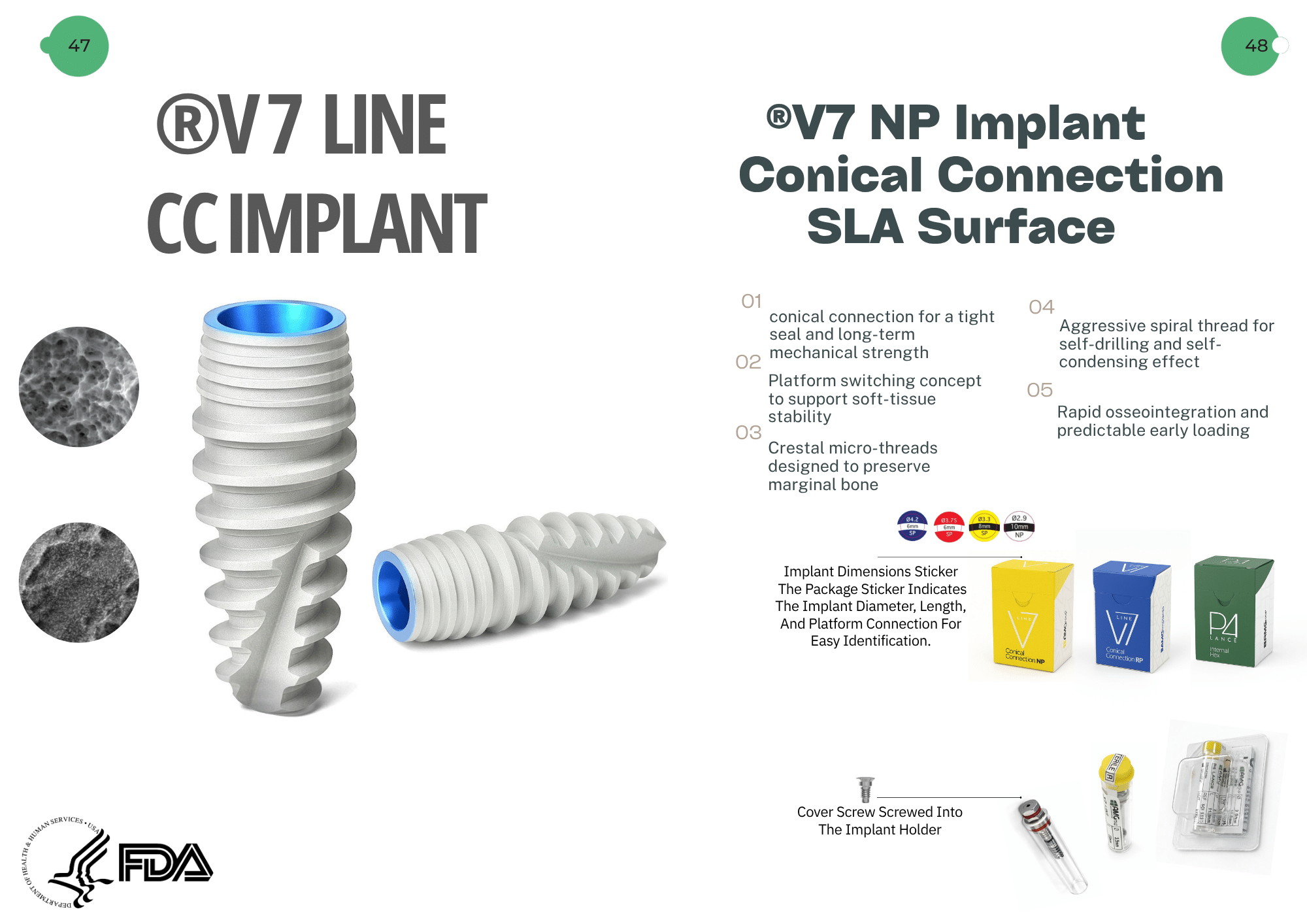

Key Design Features

Tapered implant body for controlled insertion and optimal load distribution

Progressive, self-tapping thread pattern for strong anchorage and bone condensation

Apical cutting geometry for precise trajectory and high primary stability

Crestal micro-threads designed to preserve marginal bone

Platform switching concept to support soft-tissue stability

Internal conical connection for a tight seal and long-term mechanical strength

Clinical Benefits

Excellent primary stability across bone types

Enhanced early BIC and accelerated osseointegration

Crestal bone preservation for long-term aesthetics

Predictable immediate/early loading workflows

Streamlined restorative protocol with unified platforms

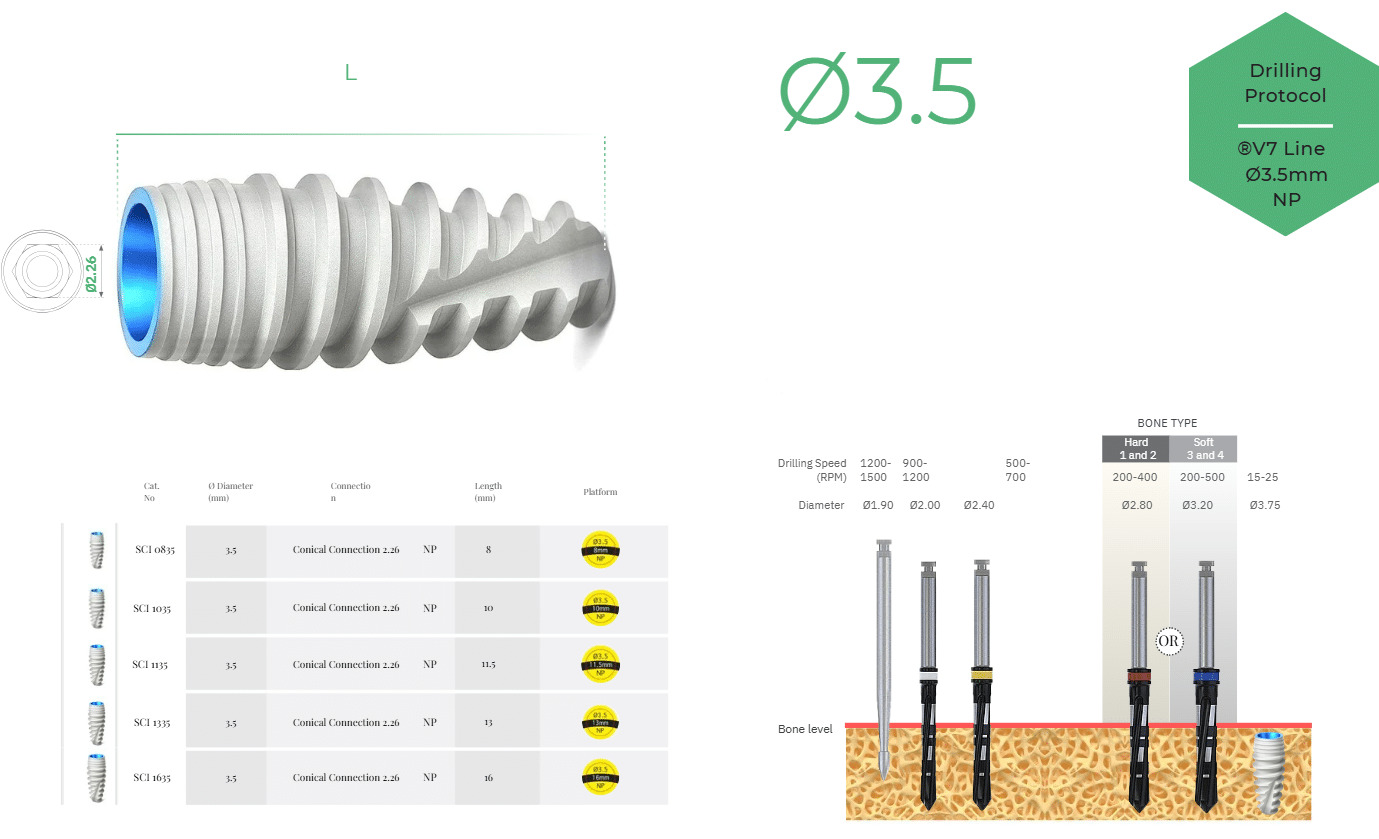

Platforms & Dimensions

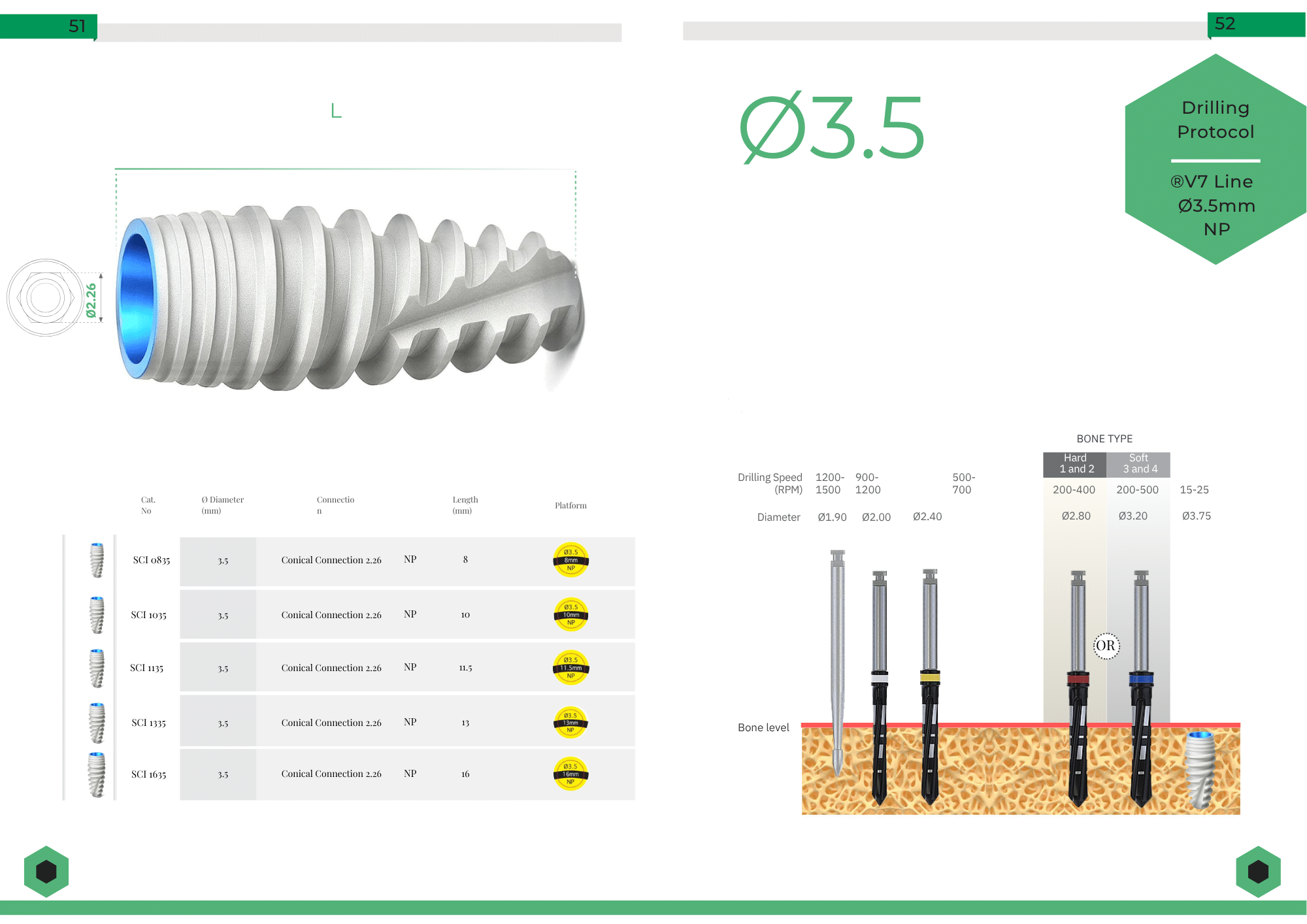

NP (Narrow Platform): Ø 3.5 mm body, Conical connection 2.25 mm

RP (Regular Platform): Ø 4.3 mm and Ø 5.0 mm bodies, Conical connection 2.65 mm

Our company’s Classic dental implants are built in order to achieve stability and serve as an anchor for a stable reconstruction.

Implant corrugation delicately fits the multi-donor bone

compression insertion process.

The cylinder implant is recommended for use in cases

of particularly hard bone, but it also functions well in other cases.

* Recommended implant solution for D1, D2, and D3 bone types. ERM’s classic Cylinder Implant are reliable product that has been used and sold for many years.

CLINICAL BENEFITS

• • Easily stabilized and controlled during placement
  • Long-term stability
  • Large surface area
  • Increased BIC
  • Minimal pressure on bone
  • Homogenic insertion

UNIQUE DESIGN FEATURES

• • Slightly tapered
  • Double thread design with variable threads
  • Apex with cutting flutes
  • Cylindrical
  • Parallel walls
  • Uniformed threads
  • High surface area

Internal Hex Connection 2.42mm

These series of implants with internal hex connection are of very high

precision, mechanical strength and guarantee long durability.

                  Prevents implant/abutment rotation

                  Provides positioning indication

Provides accurate and firm insertion using dedicated tools.

Geometry

A progressive thread allows bone compression and initial stability in the bone, and enables load transfer from the crestal to the cancellous bone. The double macro thread offers quick implantation, while the deep profile reverse buttress provides high bone grip and stability.

Apical

Self-tapping allows for exceptional cutting capabilities, and is responsible for increased stability during insertion as the implant carves, fills, and compresses the bone.
